Ansi B16.47 Class 300 Flanges

This flange type is used, normally, in high-pressure and high/low temperatures features that require an unrestricted drift of the fluid conveyed by using skill of the piping system (the bore of the flange matches with the bore of the pipe.The absence of pressure drops prevents bad outcomes as turbulence and erosion/corrosion of the metals in the proximity of the flanged joints.The tapered hub lets in a smooth distribution of the mechanical stress between the pipe and the weld neck flange and helps the execution of radiographic inspections to turn out to be conscious of manageable leakages and welding defects.The dimension of the flange (NPS and the pipe schedule) shall healthy the dimension of the connecting pipe.

Contact Now E-Mail Telephone

Product Details

ANSI B16.47 Class 300 flanges are designed to withstand high pressure and temperature applications. They have a nominal pressure rating of 300 pounds per square inch and a maximum temperature rating of 900°F for carbon steel and 1500°F for stainless steel. These flanges are typically used in industries such as oil and gas, chemical processing, and power generation.

The dimensions and specifications of ANSI B16.47 Class 300 flanges include a bolt circle diameter ranging from 10.5 inches to 26.0 inches, a raised face diameter ranging from 7.5 inches to 24.0 inches, and a raised face height of 0.75 inches. They are available in various materials such as carbon steel, stainless steel, and alloy steel.

When selecting ANSI B16.47 Class 300 flanges, it is important to consider factors such as the temperature and pressure requirements of the application, the material compatibility with the process media, and the flange dimensions that are required to match the piping system.

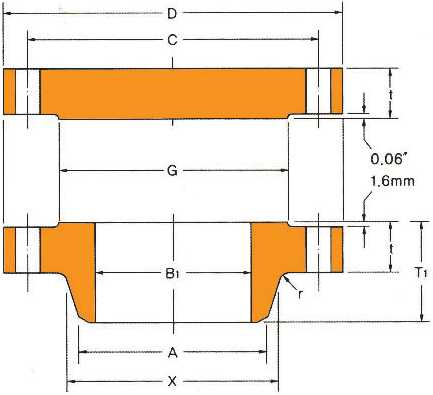

Ansi B16.47 Class 300 Flanges

Nominal

Pipe

Size

Outside

Diam

O.D. of

Raised

Face

Diam. of Hub at Base

Diam. of Hub at Bevel

BORE

Length Thru

Hub

THICKNESS

Radius at Base of Hub

DRILLING

Approximate Weight(kg)

Wall Thickness

Blind

Welding

Bolt Circle

Diam

Number of Holes

Diam. of Holes

6.35mm

9.5mm

12.7mm

Welding neck

Blind

867

736.6

701.5

665.2

647.7

641.4

635.0

144.5

88.9

14.2

803.1

35.1

181.4

411.4

921

787.4

755.7

716.0

698 5

692.2

6858

1494

88.9

14.2

857.3

35.1

204.1

46-1.0

991

844.6

812.8

768.4

749.3

743.0

736.6

158.0

93.7

14.2

920.8

38.1

249.5

566.5 1

1054

901.7

863.6

819.2

800.1

793.8

787.4

168.1

103.1

15.7

977.9

41.1

310.7

705.8

1108

952.5

917.4

870.0

850.9

844.6

838.2

173.0

103 1

15.7

1031.7

41.1

340.2

779.7

1171

1009.7

965.2

920.8

901.7

895.4

889.0

180.8

103.1

15.7

1089.2

44.5

381.0

871.4

1222

1060.5

1016.0

971.6

952.5

946.2

939.8

192.0

111.3

1113

15.7

1140 0

44.5

415.0

1023.8

1273

1114.6

1066.8

1022.4

1003.3

997.0

990.6

198.4

115.8

15.7

1190.8

44.5

449.1

1156.2

1334

1168.4

1117.6

1074.7

1054.1

1047.8

1041.4

204.7

119.1

15.7

1244 6

47.8

514.8

1304.6

1384

1219.2

1173.2

1125.5

1104.9

1098.6

1092.2

214.4

127.0

15.7

1295.4

47.8

560.2

1498.7

1461

1270.0

1228.9

1176.3

1155.7

1149.4

1143.0

222.3

130.0

128.5

15.7

1365.3

50.8

666.8

1708.3

1511

1327.2

1277.9

1227.1

1206.5

1200.2

1193.8

223.8

134.9

128.5

15.7

1416.1

50.8

714.4

1097.4

1562

1378 0

1330.5

1277.9

1257.3

1251.0

1244 6

235.0

139.7

138.2

15.7

1466.9

50.8

775.7

2099.7

1613

1428,8

1382.8

1328.7

1308.1

1301.8

129S.4

242.8

144 3

1427

15.7

1517 7

50.8

834.6

2311.5

1673

1479.6

1435.1

1379.5

1358.9

1352.6

1346.2

239.8

149.4

136.7

15.7

1577.8

50.8

898.1

2575.5

1765

1536.7

1493.8

1430.3

1409.7

1403.4

1397.0

268.2

157.0

153.9

17.5

1651.0

60.5

1177.1

3012.8

1827

1593.9

1S4Z.9

1481.1

1460.5

1454.2

1447.8

274.6

162.1

153.9

17.5

1712.0

60.5

1256.6

3332.6

1878

1651.0

1598.7

1531.9

1511.3

1505.0

14986

271.5

166.6

150.9

17.5

1763.8

60.5

1301.8

3619.7
