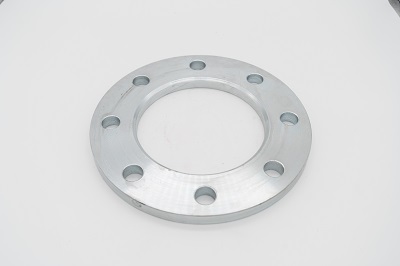

PN10 DN200 Flat Plate Flange

The connection between the flat welded flange and the pipe is to insert the pipe into the internal gap of the flange to the terrific position, and then lap welding. Flat welded flange is appropriate for low strain grade, stress fluctuation, vibration and shock are now not serious pipeline system. The benefits of flat welded flange in the flat welded flange welding meeting is less difficult to align, and the rate is cheaper, so it has been extensively used, in the home industry, flat welded flange is one of the most used flange.

Contact Now E-Mail Telephone

Product Details

PN10 DN200 Flat Plate Flange refers to a type of flange that has a flat surface and is designed to connect pipes with a diameter of 200 mm in a PN10 (pressure rating of 10 bar) piping system. This type of flange is commonly used in water supply, chemical, and industrial applications. It is often made of stainless steel or carbon steel and can come in various shapes, including round, square, and rectangular. The flat plate flange is one of the simplest types of flanges and is easy to install and remove.

Advantages:

Easy to install and remove, making maintenance and repairs quick and easy.

Offers a flat surface connection which reduces the risk of leaks.

Can be used in a variety of piping systems, including those for water supply, chemical, and industrial applications.

Can handle high-temperature and high-pressure applications.

Cost-effective and durable.

Applications:

Water supply systems, such as domestic and industrial water supply systems, irrigation systems, and marine appl

Our Company

Jin Runyuan flange of Shandong Machinery CO., LTD is located in the famous "township of the blacksmith"-Shandong Jinan chapter grave area set street agency headquarters, where convenient transportation beautiful environment. Company was founded in 2001, covers an area of 20000 square meters, is a professional manufacturer of forging flange company, main products: Japanese standard, American standard, German standard, the standard also can according to customers drawings or samples processing. Existing fixed assets of 40 million,the annual output 40 million tons.Products are exported to Japan, the United States, Germany, South Korea, Russia, Brazil, South Africa, more than 20 countries and regions, such as product quality deeply the general customers the high praise and trust.

Company strong technical force, professional experience, equiptment, professional production and technical personnel 10 people, the production of 120 front-line workers, management personnel E people, packing, inspection personnel more than 20 people. High quality international most advanced forging machinery processing, assembly, inspection, packaging production lines, product quality meet the national and international standards, and has obtained ISSO9001-2000 quality management system certification, the French classification society certification, China special equipment manufacturing license, pressure vessel manufacturing license.

Our Factory

Raw Material Blanking
